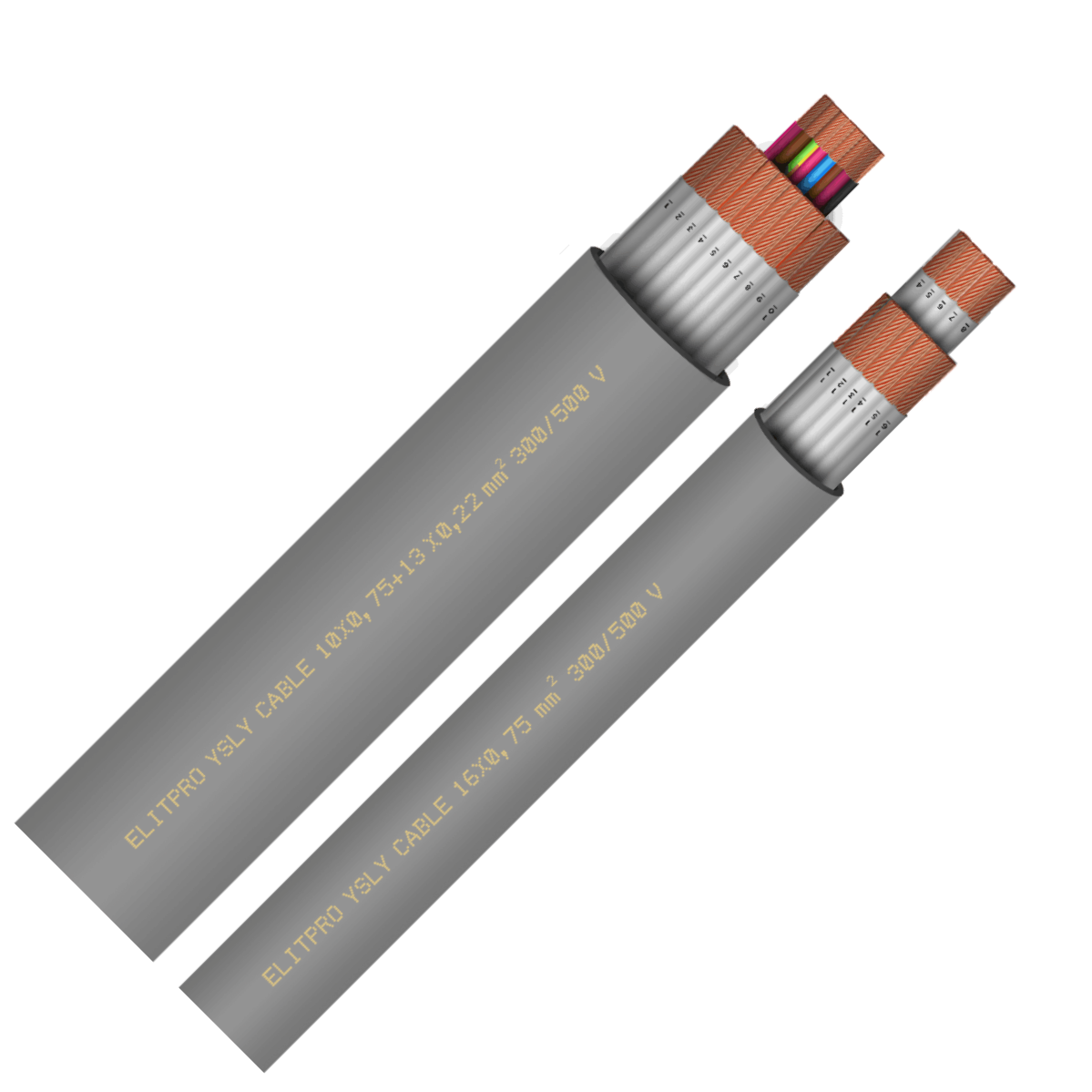

CONSTRUCTION
CONDUCTOR: Electrolytic twisted copper wire
INSULATION: PVC/HFFR
STRANDING: Twisted in group
SHEATH: PVC (Black-Gray)
HFFR (Light Green)
TECHNICAL DATA
Minimum Bending Radius: 10xCable Diameter
Operating Temperature: -15°C to +70°C
Rated Voltage: 300/500V - 450/750V
Test Voltage: 2000-2500V
Shipping Lenght : 100 m
APPLICATION
For PVC;
In places where low mechanical stresses exist. They are mostly used in factories.
For HFFR;
In places where medium level mechanical stresses exist and in places where human life and valuable materials and equipment need to be protected
