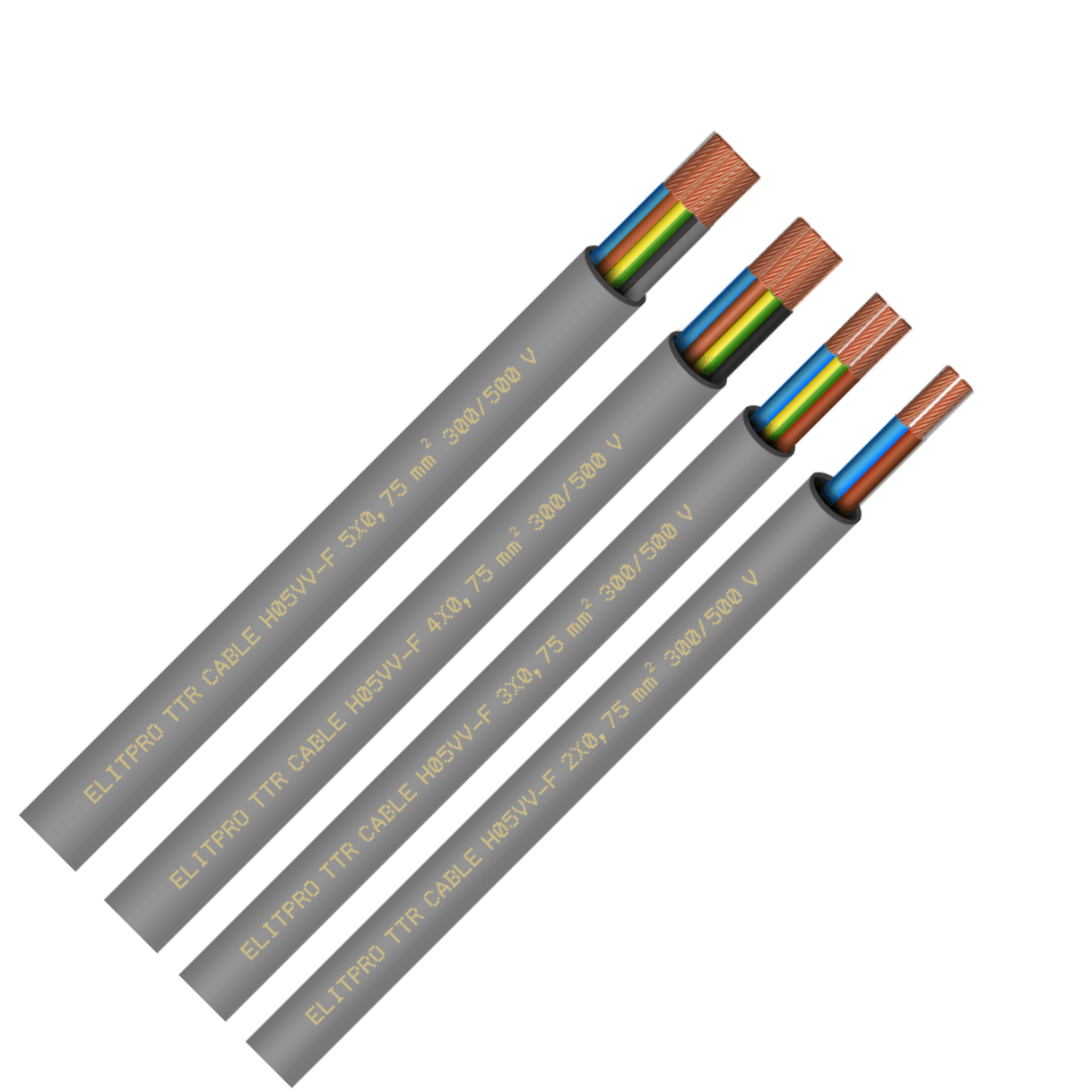

CONSTRUCTION
CONDUCTOR: Fine-stranded Cu-conductor.
INSULATION: PVC/HFFR
TWISTING: Conductors are layered in fixed steps
SHEATH: PVC (Black-Gray)
HFFR (Light Green)

TECHNICAL DATA
Minimum Bending Radius: 10xCable Diameter
Operating Temperature: -15°C to +70°C
Short Circuit Temperature: 160°C
Rated Voltage: 300/500V
Shipping Lenght: 100 m.

APPLICATION
For PVC;
Used in covered and dry places where the mechanical stresses exist, on household appliances, in damp and steamed areas.
For HFFR;
Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plant, data processing centers, business centers where there is a risk of fire. Not suitable for outdoor application
