Rope Attachment

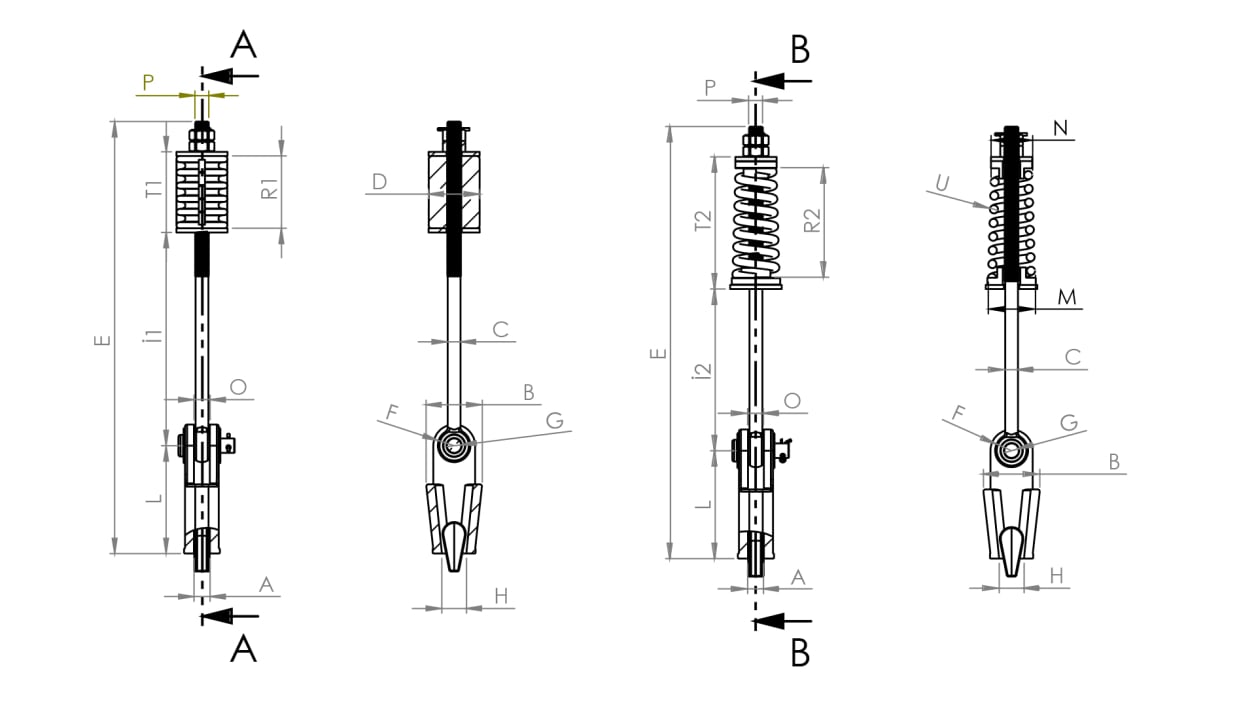

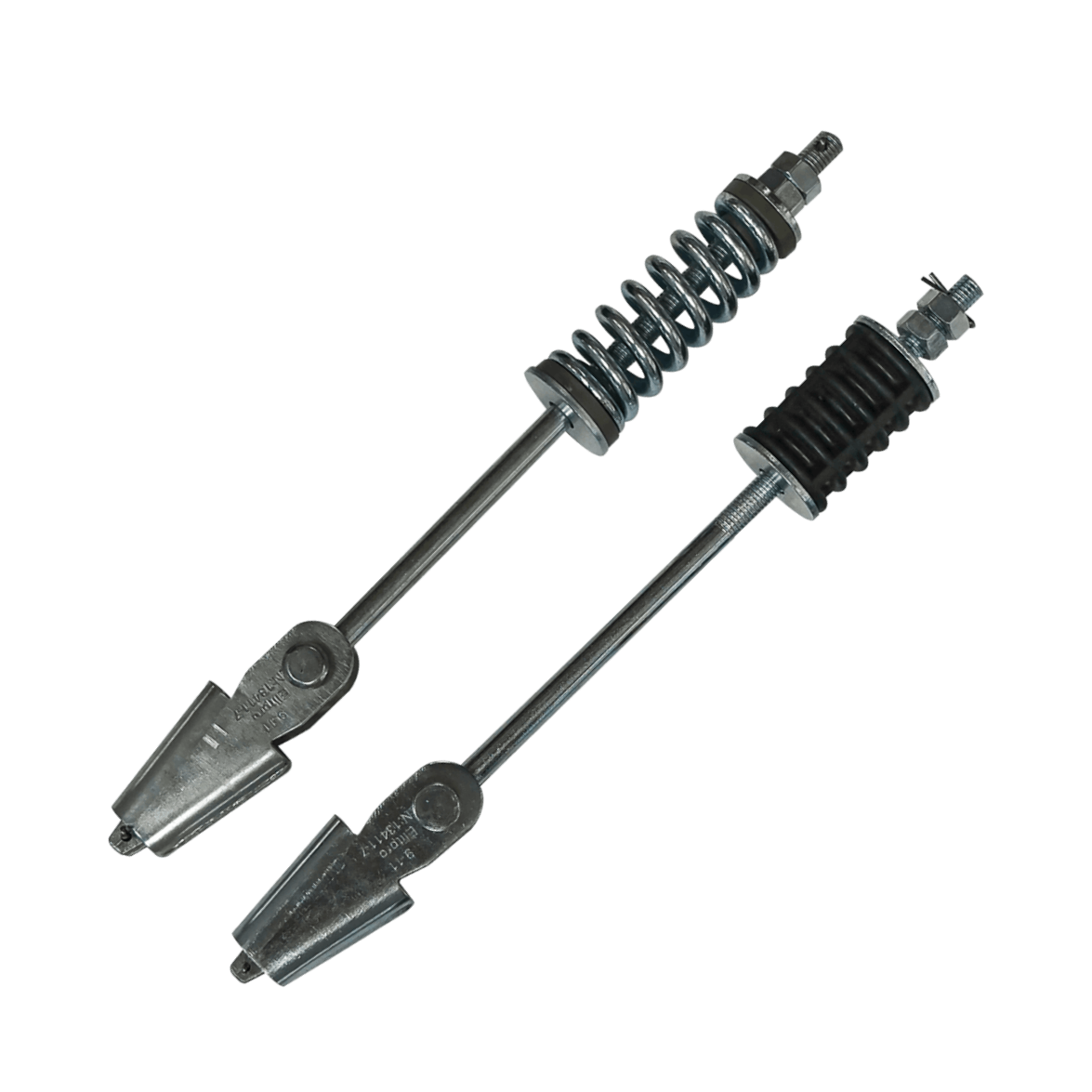

SYMETRIC WEDGE SHEET IRON ROPE ATTACHMENT
Rope attachment is used in the connection of steel ropes carrying the cabin and counterweight in the elevator system. It is a mechanical system used to fix the ends of the steel ropes, adjust their tension and ensure their smooth operation.

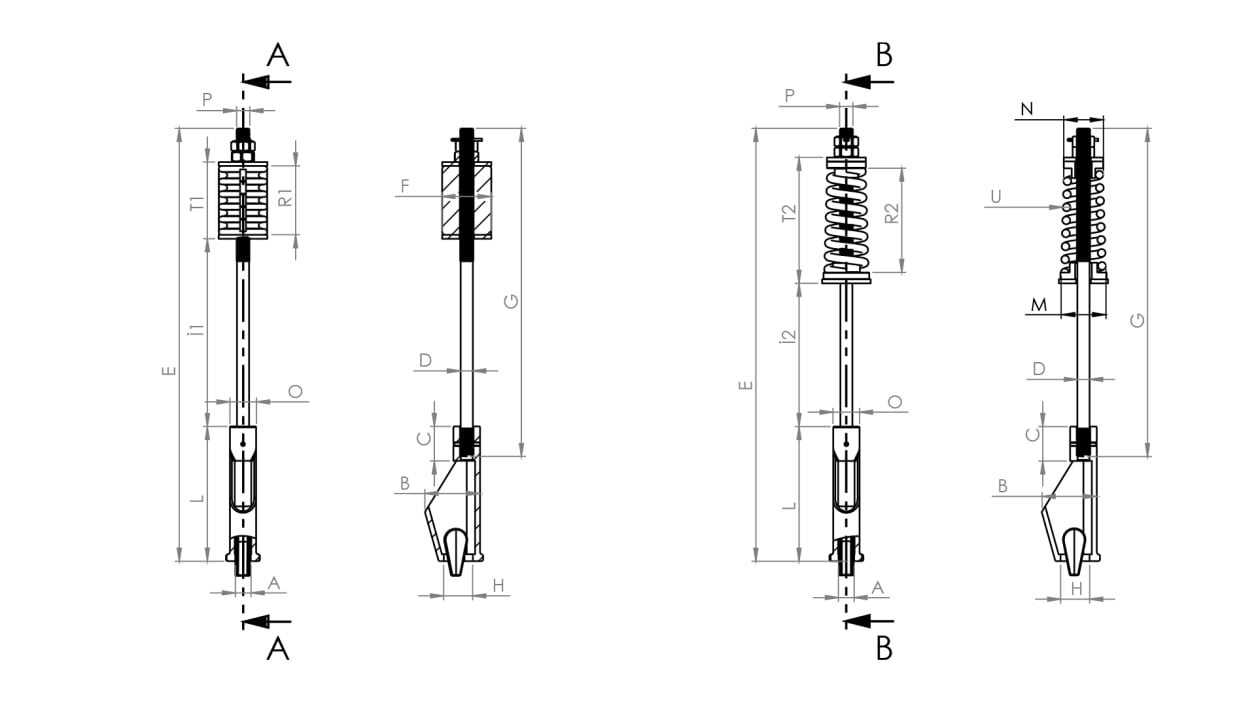

Technical Specifications

TİP Model	E mm	L mm	I1 mm	T1 mm	P	R1 mm	O mm	T2 mm	R2 mm	I2 mm	A mm	B mm	C mm	D mm	F mm	G mm	H mm	M mm	N mm	U
PROSH-06	480	165	204	78	M14X2	70	21	129	106	167	20	61	12,6	50	32	14,5	29	45	41	Ø8
PROSH-07	395	130	175	58	M12x1,75	50	16,5	125	100	111	14	47	10,6	40	32	12,5	22	36	36	Ø6
PROSH-10	485	165	200	78	M16X2	70	21	129	106	149	20	61	14,5	50	40	16,5	29	45	41	Ø8
PROSH-11	425	105	216	78	M14X2	70	18	129	106	168	15,5	52	12,6	50	32	14,5	26	45	41	Ø8
PROSH-12	360	105	172	58	M12x1,75	50	15	125	100	103	14	44	10,6	40	32	12,5	21	36	36	Ø6
PROSH-13	285	86	128	48	M12x1,75	40	12,5	108	100	63	9	35	10,6	30	23	10,5	16,5	25	25	Ø6
PROSH-14	285	86	136	48	M10X1,5	40	10	72	64	100	9	35	8,8	30	23	10,5	16,5	23,5	23,5	Ø4,5

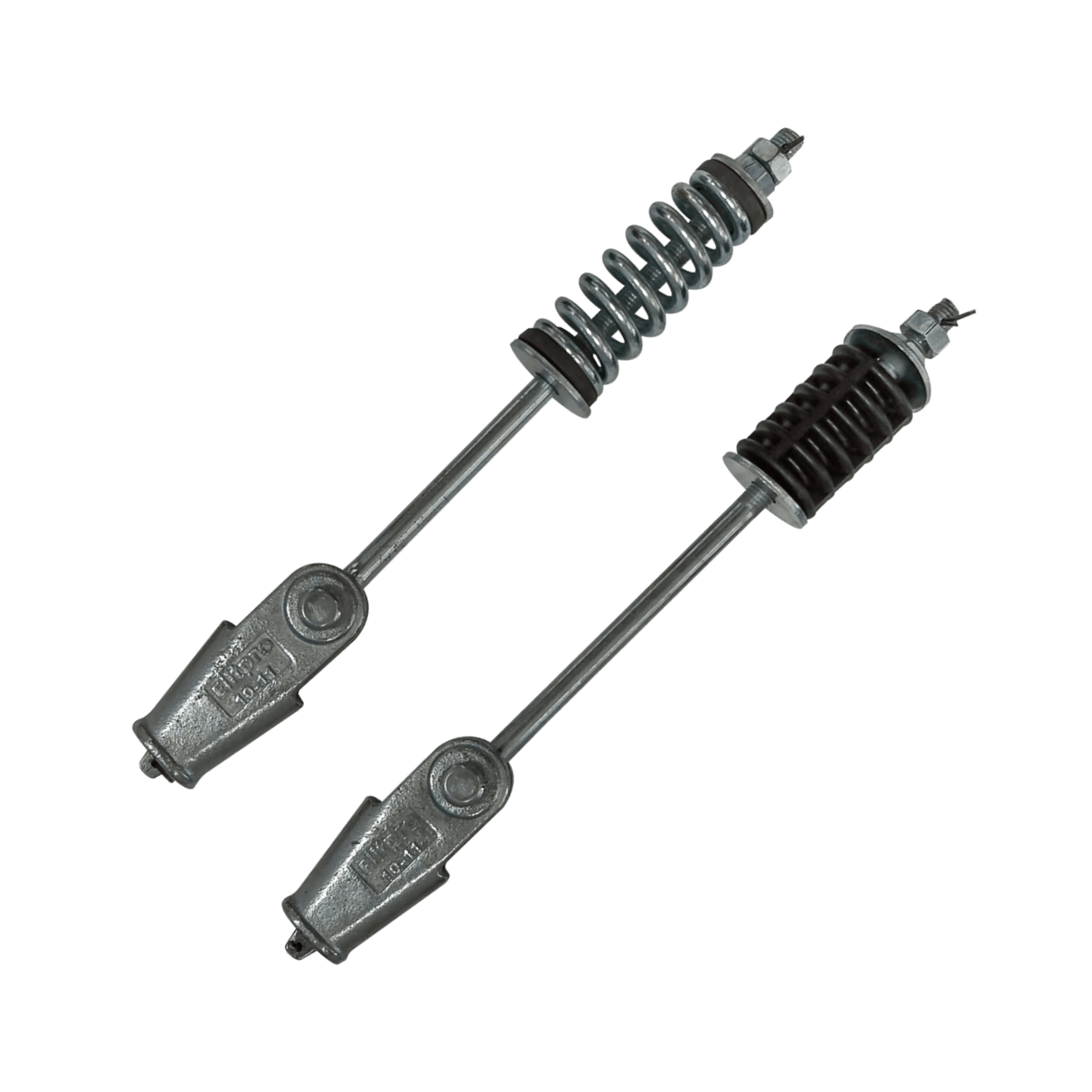

SYMETRIC WEDGE DUCTILE IRON ROPE ATTACHMENT
Rope attachment is used in the connection of steel ropes carrying the cabin and counterweight in the elevator system. It is a mechanical system used to fix the ends of the steel ropes, adjust their tension and ensure their smooth operation.

Technical Specifications

TİP Model	E mm	L mm	I1 mm	T1 mm	P	R1 mm	O mm	T2 mm	R2 mm	I2 mm	A mm	B mm	C mm	D mm	F mm	G mm	H mm	M mm	N mm	U
PROSH-03	420	105	207	78	M14X2	70	16	129	106	152	15	55	Ø12,6	50	32	14,5	24	45	41	Ø8
PROSH-04	370	105	175	58	M12x1,75	50	14	125	100	110	13	51	Ø10,6	40	32	12,5	19	36	36	Ø6
PROSH-05	483	165	202	78	M16X2	70	15	129	106	155	17	60	Ø14,5	50	40	16,5	28	45	41	Ø8

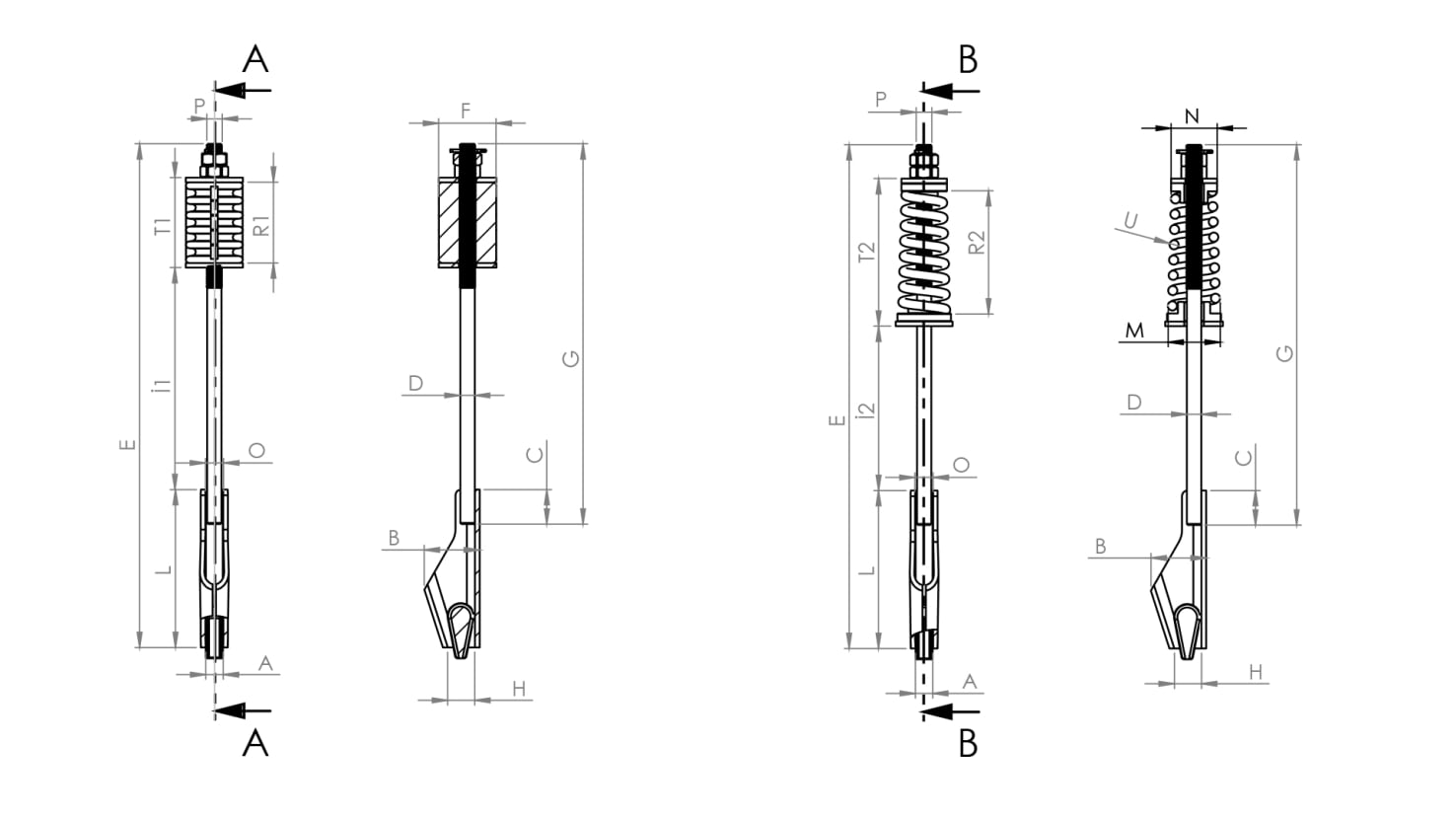

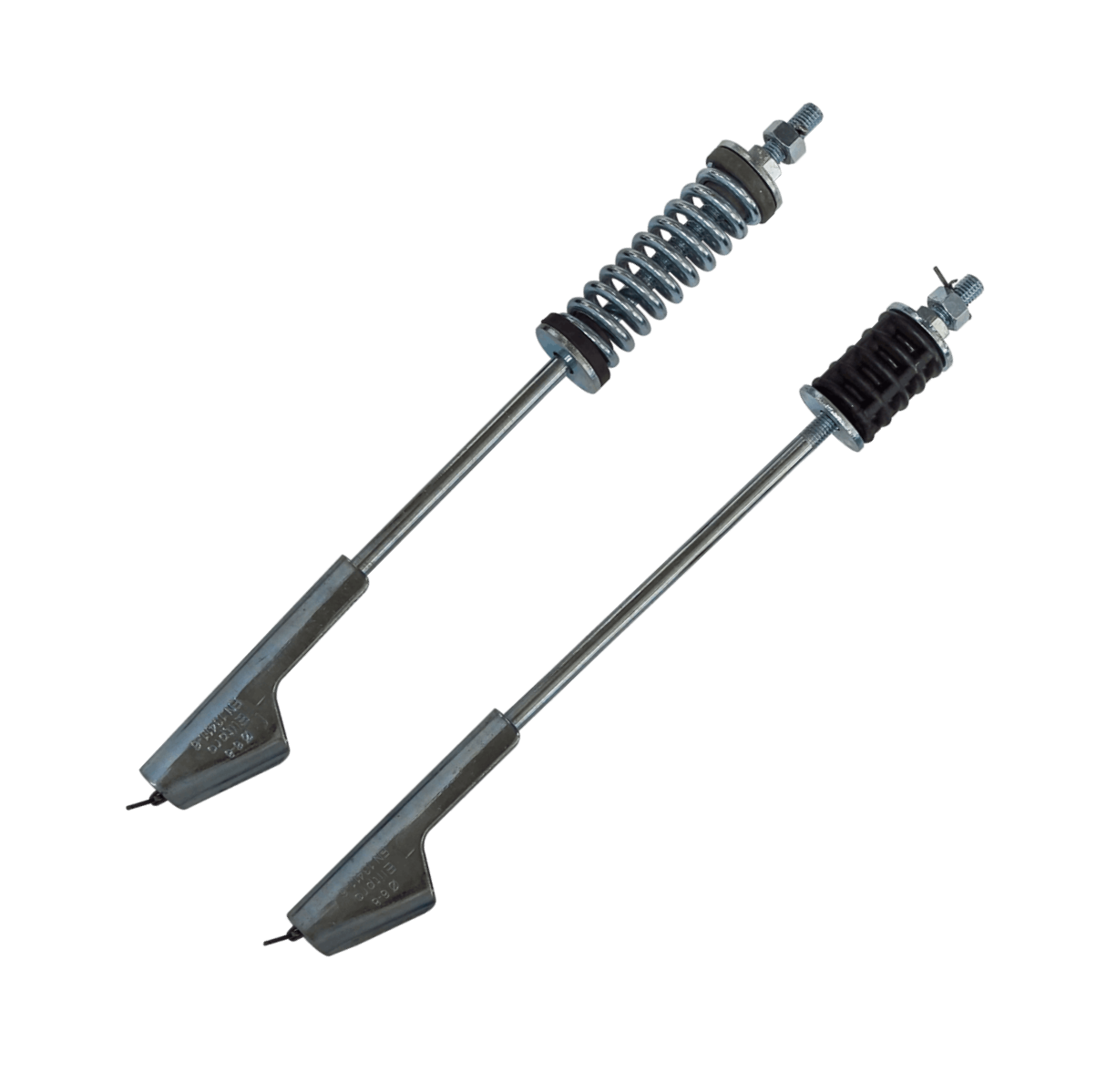

ASYMETRIC WEDGE SHEET IRON ROPE ATTACHMENT
Rope attachment is used in the connection of steel ropes carrying the cabin and counterweight in the elevator system. It is a mechanical system used to fix the ends of the steel ropes, adjust their tension and ensure their smooth operation.

Technical Specifications

TİP Model	E mm	L mm	I1 mm	T1 mm	P	R1 mm	O mm	T2 mm	R2 mm	I2 mm	A mm	B mm	C mm	D mm	F mm	G mm	H mm	M mm	N mm	U
PROSH-08	440	137	188	78	M14X2	70	15,5	129	106	133	15	48	38,5	Ø12,6	50	340	25	45	41	Ø8
PROSH-09	440	138	210	58	M12x1,75	50	14	125	100	141	13	46	38	Ø10,6	40	340	22	36	36	Ø6
PROSH-15	320	115	132	48	M10X1,5	40	9	72	64	108	9,5	33	27	Ø8,8	30	230	16	23,5	23,5	Ø4,5

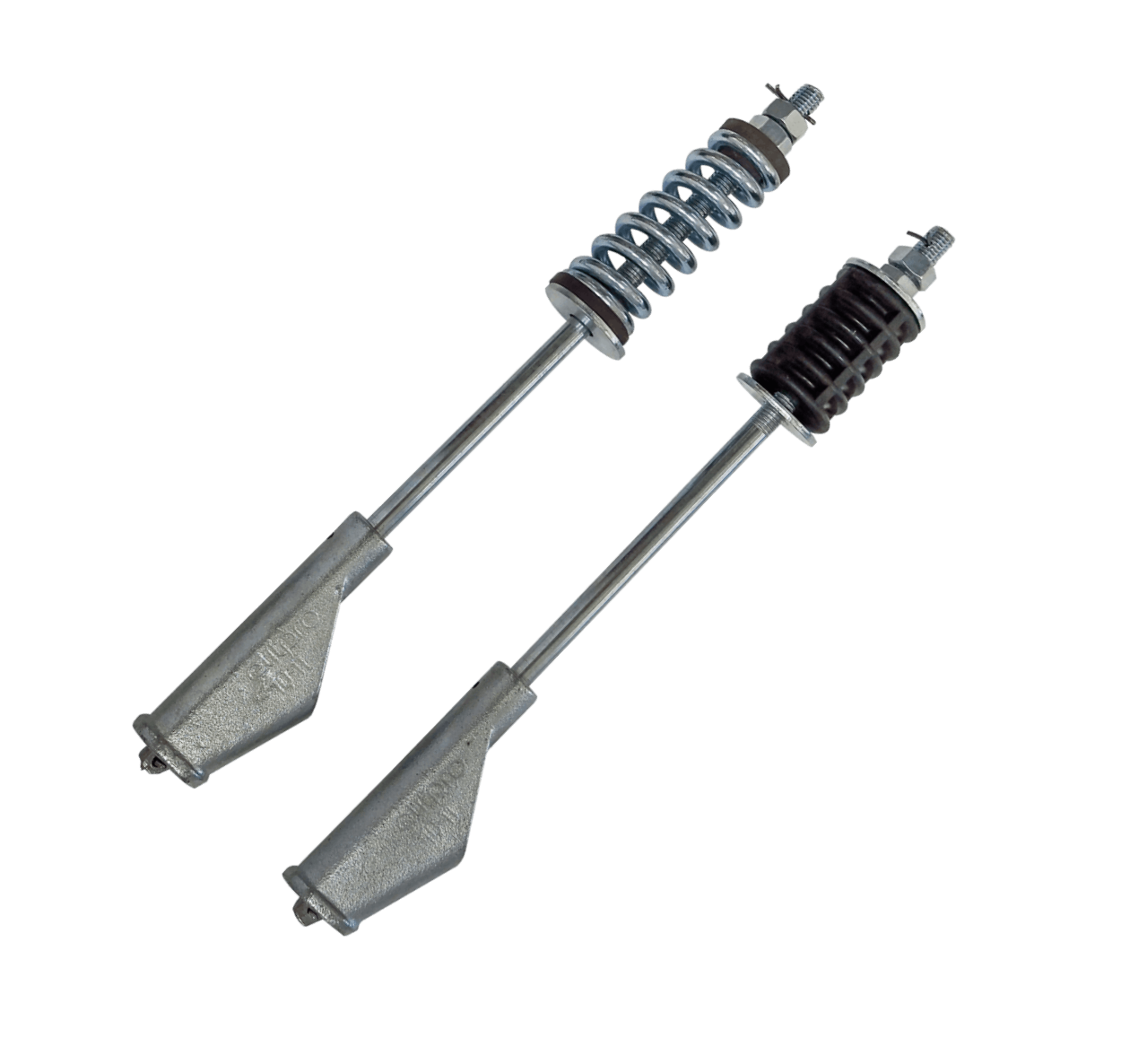

ASYMETRIC WEDGE DUCTILE IRON ROPE ATTACHMENT
Rope attachment is used in the connection of steel ropes carrying the cabin and counterweight in the elevator system. It is a mechanical system used to fix the ends of the steel ropes, adjust their tension and ensure their smooth operation.
